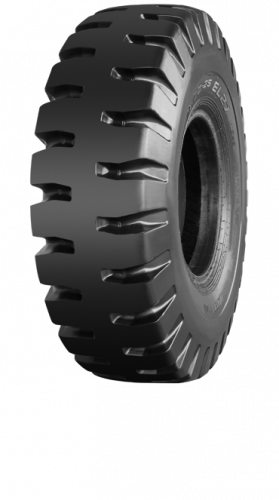

EL27

EL27

Benefits and Features

23.5-25

Classic non-directional tread design formulated with cut resistance compound.

Robust casing with unique cut resistance compound ensures a longer life


26.5-25

Extra-deep non-directional sturdy lug pattern provides good traction for rugged mining and quarrying.

Robust casing with unique cut resistance compound ensures a longer life


35/65-33

Specially designed for big loaders that experience tough working conditions

Unique cut resistance tread compound and tough carcass prevents cuts and impact damage

Specifications

  • Size TRA
    Code    		 Ply
    Rating    		 Standard
    Rim    		 Tread
    Depth
    (mm)    		 Overall
    Diameter
    (mm)    		 Section
    Width
    (mm)    		 Max. Load
    Capacity
    (kg)    		 Cold
    Inflation
    Pressure
    (kPa)    		 TT/TL
    23.5-25 L-3 20 19.5/2.5 35 1615 595 10900 375 TL
      E-3 20 19.5/2.5 35 1615 595 7300 300 TL
    26.5-25 L-4 28 22.00/3.0 54 1780 675 15500 475 TL
      E-4 28 22.00/3.0 54 1780 675 10000 350 TL
    35/65-33 L-5 36 28.00/3.5 100 2075 890 23600 525 TL
    35/65-33 L-5 48 28.00/3.5 100 2075 890 17500(50km/h) 525(50km/h) TL
      L-5 48 28.00/3.5 100 2075 890 28800(10km/h) 725(10km/h) TL
