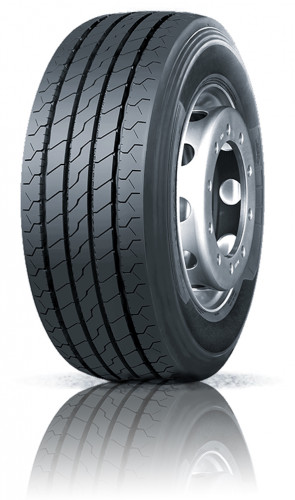

WTL1

WTL1

New wide base trailer tyre with WESTLAKE’s latest technology for long-haul use.

5-rib tread design improves mileage.

Computer-designed tyre structure provides excellent footprint profile and ensures superior comfort and even wear.

Special tread compound guarantees reduced fuel consumption with lower rolling resistance.

Stone ejectors in U-shaped grooves minimise stone holding and penetration.

Made in Thailand

Specifications

  • Size Overall
    Width
    (mm)
    Overall
    Diameter
    (mm)
    Loaded
    Radius
    (mm)
    Rolling
    (mm)
    Circ.±2%
    Measuring
    Rim
    (inch)
    Opt.
    Rim
    (inch)




    385/
    55R22.5
    401 992 462 3006 12.25 11.75
    385/
    65R22.5
    387 1072 494 3248 11.75 12.25











    Single/
    Dual
     Load Capacity(KG) At Relative Air Pressure(kPA/Bar/PSI)
    450 475 500 525 550 575 600 625 650 675
    4.50 4.75 5.00 5.25 5.50 5.75 6.00 6.25 6.50 6.75
    66 69 73 77 80 84 87 91 95 98
    S             6200 6430 6670 6900
    S(158L)             6000 6250 6500 6750









    Single/
    Dual
     Load Capacity(KG) At Relative Air Pressure(kPA/Bar/PSI)
    700 725 750 775 800 825 850 875 900 925 950
    7.00 7.25 7.50 7.75 8.00 8.25 8.50 8.75 9.00 9.25 9.50
    102 106 109 113 116 120 124 127 131 135 138
    S 7140 7370 7600 7830 8070 8300 8500 8770 9000
    D 7000 7250 7500 7750 8000 8250 8500
